HOME ELEVATORS

Home elevators are smaller than commercial elevators. Typically, a home elevator can accommodate three or four adults or two people with one in a wheelchair. Floor size can be up to 18 sq. ft. (1.67 sq. meters) – where allowable by code. 500-lb. (226 kg), 950-lb. (430kg) and 1,000-lb (453 kg) weight capacities are available. They are usually designed to complement or replicate the home’s interior or a homeowner’s custom elements.

Architects love the near endless design possibilities. Every product is skillfully hand-made and finished one-at-a-time, making customization possible. We have built a strong reputation in the Reno/ Lake Tahoe area by providing exceptional customer service and delivering a clean reliable product.

Contact Nick Koch by email at nick@kochelevator.com or by phone at 775-247-8820 for more information.


HOME ELEVATORS

Home elevators are smaller than commercial elevators. Typically, a home elevator can accommodate three or four adults or two people with one in a wheelchair. Floor size can be up to 18 sq. ft. (1.67 sq. meters) – where allowable by code. 500-lb. (226 kg), 950-lb. (430kg) and 1,000-lb (453 kg) weight capacities are available. They are usually designed to complement or replicate the home’s interior or a homeowner’s custom elements.

Architects love the near endless design possibilities. Every product is skillfully hand-made and finished one-at-a-time, making customization possible. We have built a strong reputation in the Reno/ Lake Tahoe area by providing exceptional customer service and delivering a clean reliable product.

Contact Nick Koch by email at nick@kochelevator.com or by phone at 775-247-8820 for more information.


STANDARD FEATURES & CUSTOM OPTIONS

Choose a standard model or a one-of-a-kind elevator. Inclinator’s Elevette® is available in five standard cab styles, three drive system types, many door configurations and the most custom features and accessory options. Elevette can be placed in an interior or exterior elevator shaft or in no shaft … running up the center of open winding stairs, next to stairways and where no stairs exist.
  • Custom cab sizes up to 18 sq. ft. (1.67 sq. meters) where allowed by code
  • Gate or door openings on 1, 2 or 3 sides
  • Nearly all wood species available
  • Stained or painted in factory or on site
  • Commercial-grade laminate flooring with simulated wood grain finish
  • Unfinished oak veneer flooring available to accommodate on-site flooring
  • Collapsible or accordion fold gate(s)
  • Automatic gate and door operators available
  • Two LED ceiling lights standard
  • Flat wood handrail standard (round metal available)
  • Cab Operating Panel in elevator, Hall Station at each landing
  • Custom accessories and finishing available

STANDARD FEATURES & CUSTOM OPTIONS

Choose a standard model or a one-of-a-kind elevator. Inclinator’s Elevette® is available in five standard cab styles, three drive system types, many door configurations and the most custom features and accessory options. Elevette can be placed in an interior or exterior elevator shaft or in no shaft … running up the center of open winding stairs, next to stairways and where no stairs exist.
  • Custom cab sizes up to 18 sq. ft. (1.67 sq. meters) where allowed by code
  • Gate or door openings on 1, 2 or 3 sides
  • Nearly all wood species available
  • Stained or painted in factory or on site
  • Commercial-grade laminate flooring with simulated wood grain finish
  • Unfinished oak veneer flooring available to accommodate on-site flooring
  • Collapsible or accordion fold gate(s)
  • Automatic gate and door operators available
  • Two LED ceiling lights standard
  • Flat wood handrail standard (round metal available)
  • Cab Operating Panel in elevator, Hall Station at each landing
  • Custom accessories and finishing available

CAB STYLES

Powder-coated extruded aluminum frame with acrylic panels that provide a panoramic view when used in an open environment or glimpses of the home’s interior or outdoors when placed in a shaft with windows.

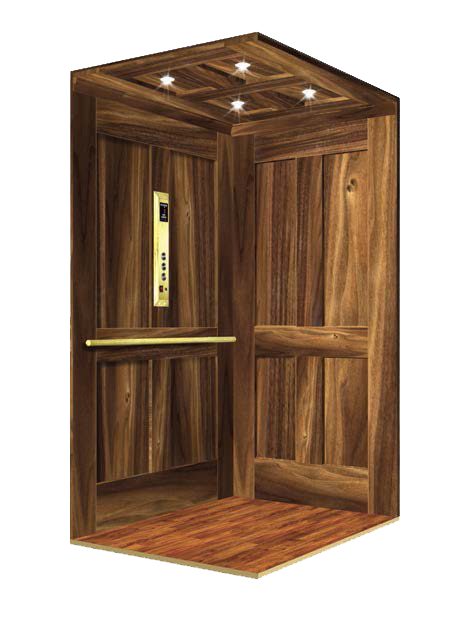

Solid wood with hardwood veneer raised or recessed panels in 1-over-1 or 2-over-2 configuration. This cab complements a traditional or transitional home style. Customize
to match a home’s cabinetry. (shown with two additional LED lights)

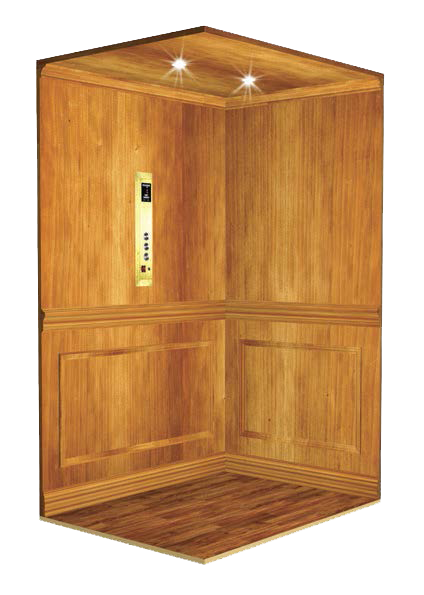

Smooth hardwood panels with crown, chair, baseboard and picture molding make this our most popular cab style. And very customizable, as you can finish it to match the home’s walls and architectural details.

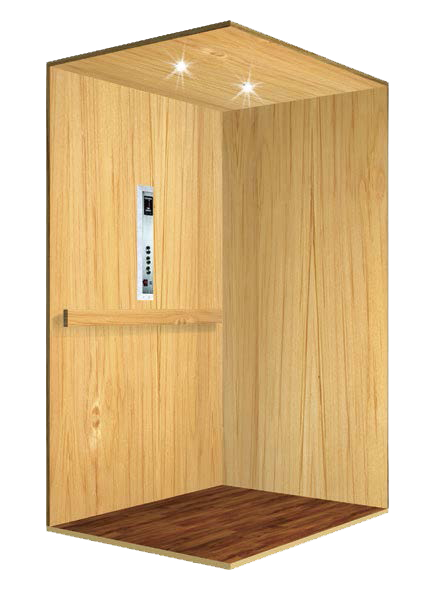

Smooth hardwood veneer panels with flush corners make this style ideal for more contemporary designs. Can be finished to match or complement the home’s clean look and feel.
150 Cab Available: MDF raised panels (in 1-over-1 or 2-over-2 configuration) with paintable walls.

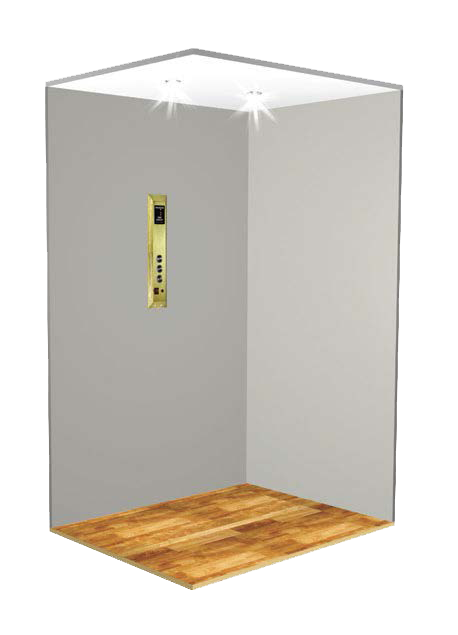

Smooth MDF paintable walls with flush corners. White laminate ceiling.

DRIVE SYSTEMS


Elevette® Cable Drum

  • The quietest cable drum home elevator in the industry
  • Patented, space-saving monorail guiding system
  • Proprietary Control System: serial logic, self diagnostic, all-time safety monitoring
  • Drive system housed in machine room
  • Can be used for in-shaft and no-shaft elevators
  • For use with all Inclinator cab styles
  • 1,000-lb. (453 kg) capacity with up to 18 sq. ft. (1.67 sq. meters) cab size - where allowed by code
  • 500-lb. (226 kg) capacity with up to 15 sq. ft. (1.39 sq. meters) cab size - where allowed by code
  • Up to 40 ft. (12.19 meters) per minute travel speed
  • Travel up to 50 ft. (15.24 meters)
  • Can accommodate up to 6 landings
  • Emergency battery lowering
  • Pre-wire package
  • Cab gate & door safety devices
  • Two Type A safety devices
  • Overrun switch
  • Slack cable disconnect

Elevette® Hydraulic

  • Patented HydraRide system delivers a smooth ride and quiet operation
  • Patented, space-saving monorail guiding system
  • Proprietary Control System: serial logic, self diagnostic, all-time safety monitoring
  • Drive system housed in machine room
  • For in-shaft elevators only
  • For use with all Inclinator cab styles
  • 950-lb. (430 kg) capacity with up to 18 sq. ft. (1.67 sq. meters) cab size - where allowed by code
  • Up to 40 ft. (12.19 meters) per minute travel speed
  • Travel up to 50 ft. (15.24 meters)
  • Can accommodate up to 6 landings
  • Emergency battery lowering
  • Pre-wire package
  • Aluminum corrosion-resistant lightweight tank
  • Power unit requires much less hydraulic fluid than other brands
  • Cab gate & door safety devices
  • Two Type A safety devices
  • Overrun switch

Elevette® MRL Geared

  • Machine roomless (MRL) drive system housed entirely in the shaftway using an efficient counterweight system with a geared motor
  • Heavy-duty double rail chassis
  • Proprietary Control System: serial logic, self diagnostic, all-time safety monitoring
  • For in-shaft elevators only
  • For use with all Inclinator cab styles
  • 950-lb. (430 kg) capacity with up to 18 sq. ft. (1.67 sq. meters) cab size - where allowed by code
  • Up to 40 ft. (12.19 meters) per minute travel speed
  • Travel up to 60 ft. (18.28 meters) - where allowed
  • Can accommodate up to 6 landings
  • Featuring energy-efficient counterweight technology
  • Emergency battery lowering
  • Pre-wire package
  • Homing device
  • Cab gate & door safety devices
  • Two Type A safety devices
  • Overrun switch
